Choosing between suspended and surface mounted lighting is one of the first real decisions when you fit out a garage, and it changes how bright, how clean and how usable the space feels. This guide gives you the short answer up front, then the numbers, ceiling height rules and Australian garage realities that most pages skip.
Short answer: for a standard Australian garage with a 2.4m to 2.7m plasterboard ceiling, surface mounted lighting wins for most people because it sits tight to the ceiling, keeps clearance for the door and looks clean. Suspended lighting earns its place in high or raked ceilings above roughly 3m, and where you want to drop light down over a workbench or car bay.
What surface mounted and suspended garage lighting actually mean

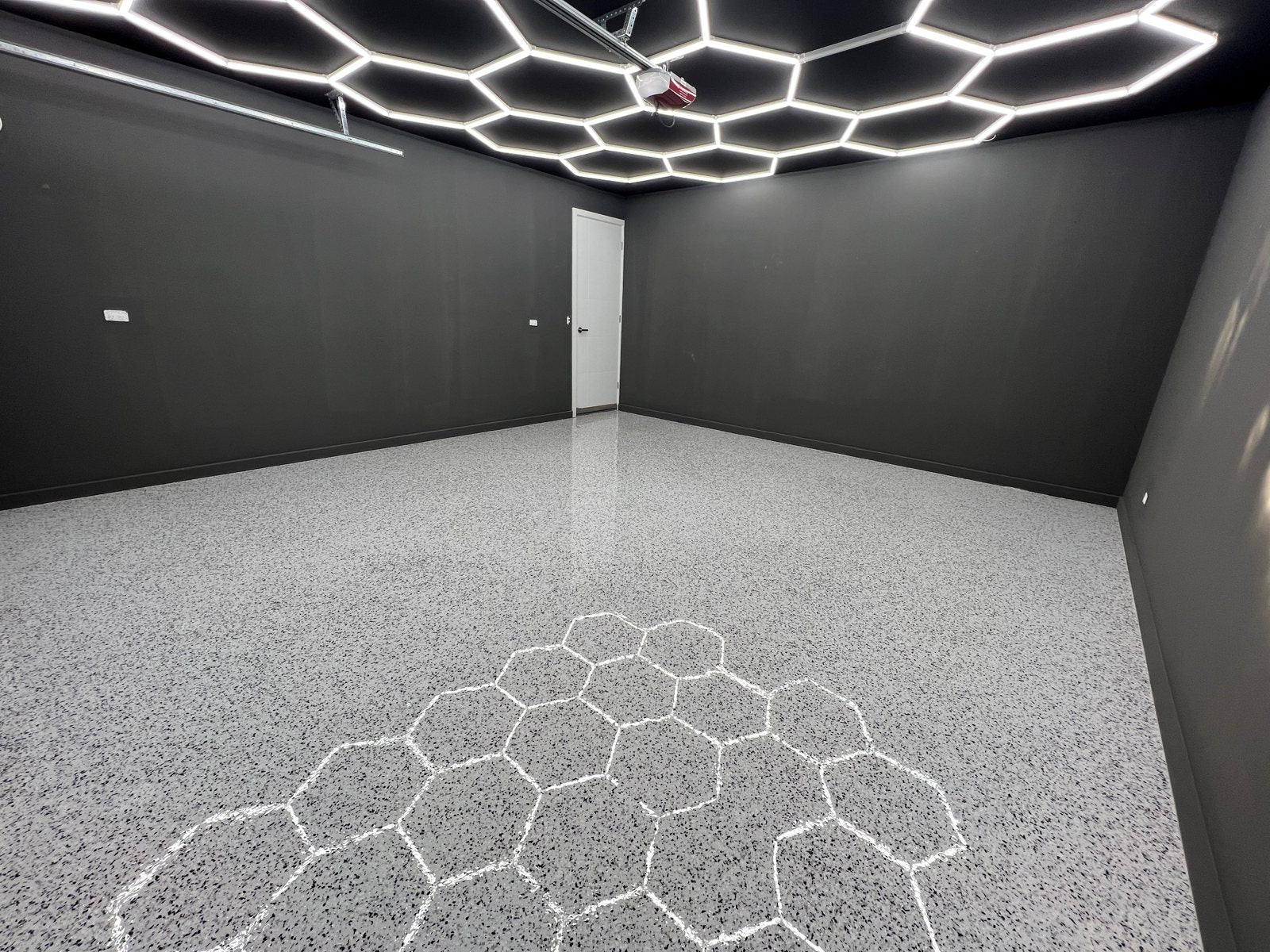

Surface mounted lighting fixes directly to the ceiling so the fixture sits flush against the surface. There is no gap and no drop. HEXA hexagon systems are a good example, they mount tight to the ceiling and spread light across a wide area.
Suspended lighting hangs below the ceiling on chain, cable or pendant hardware, so the fixture drops down into the room. Bringing the light source closer to the work surface increases the light that lands on it and lets you zone the light over a specific area.
A third option, recessed, sits inside the ceiling cavity. It is uncommon in garages because most have limited plenum space above plasterboard or exposed structure, so this guide focuses on the two mounts that suit real Australian garages.
Suspended vs surface mounted garage lighting: side by side
Use this table to make the call fast, then read on for the detail that applies to your ceiling.
| Factor | Surface mounted | Suspended |
|---|---|---|
| Install difficulty | Easier, fixes straight to the ceiling | Harder, needs suspension hardware and levelling |
| Typical cost | Lower, fewer accessories | Higher, adds cable or chain kits |
| Ceiling height needed | Works from 2.4m up | Best above 3m so it does not intrude on headroom |
| Glare | Wider, softer spread across the room | More concentrated, easier to aim at a task |
| Heat dissipation | Good, open airflow around the fixture | Very good, air moves on all sides |
| Maintenance | Fixed height, needs a ladder | Lower and easier to reach |
| Aesthetics | Clean, flush, minimal look | Feature look, more visual presence |
| Best use case | Standard 2.4m to 2.7m garages, whole room light | High or raked ceilings, task zones over a bench or bay |
How ceiling height decides it
Ceiling height is the single biggest factor, and it comes down to headroom and how far the light has to travel.
- Low ceilings, around 2.4m: surface mount every time. A hanging fixture eats into headroom, gets in the way of a raised garage door and can be clipped by tall items or a person carrying a ladder. Keep the light tight to the ceiling.
- Standard ceilings, 2.4m to 2.7m: surface mount is still the safe default. There is not enough height to gain much from dropping a fixture, and flush mounting keeps the whole ceiling plane clear.
- High or raked ceilings, 3m and above: suspended lighting starts to make sense. On a tall ceiling the light has further to fall, so lux at the floor drops. Lowering the fixture on a suspension kit brings the source closer to the work, lifts brightness where you need it and reduces the cave effect of a bright ceiling and a dim floor.
A simple rule of thumb, if your ceiling is above 3m and the floor feels dim, dropping the light 300mm to 800mm can make a real difference without stealing usable headroom.
Working out garage brightness
Mount type only matters once you know how much light you actually need. Brightness is measured in lux at the surface, and fixtures are rated in lumens. As a practical Australian garage guide:
- General garage and parking: aim for roughly 150 to 300 lux, or about 150 to 300 lumens per square metre after losses.
- Workbench and general DIY: aim for roughly 400 to 500 lux over the bench.
- Detailing, paint inspection and fine work: aim for 500 to 750 lux or more, with a high quality, high colour rendering light so you can see swirl marks and true colour.
As a starting point, multiply your floor area in square metres by your target lux to get a rough total lumen figure, then add headroom for fixture spacing and ceiling reflectance. Surface mounted fixtures spread light widely and give even, low shadow coverage across the whole garage, which suits general use. Suspended fixtures concentrate more light directly below them, which lifts task lux but can leave darker gaps between fittings if you space them too far apart. For full spacing and sizing maths, see our garage lighting buying guides.
Matching the mount to your garage ceiling type
Australian garages come with very different ceilings, and the right fixings and mount change with each one.
- Plasterboard (plasterboard on battens): the most common. Surface mount works cleanly, but heavier fixtures should be fixed into the ceiling joists or battens, not just the plasterboard sheet. Use appropriate anchors where you cannot hit a joist.
- Exposed timber rafters: ideal for either mount. Surface mount screws straight into solid timber, and suspension hooks or brackets have plenty to grip, so this is where suspended feature layouts shine.
- Colorbond or metal ceilings: common in sheds and newer garages. Fix into the roof structure or purlins with suitable self drilling fixings, and be mindful that metal can radiate heat, so keep airflow around the fixture.
- Concrete ceilings: usual under a house or in a basement garage. Surface mounting needs masonry anchors and a hammer drill. Suspension anchors also work well and let you drop the light to a comfortable height in what are often taller spaces.
Browse the full range of hexagon LED lighting to see which systems suit each ceiling.
When surface mount wins
- Standard 2.4m to 2.7m ceilings where headroom is precious.
- You want a clean, flush, modern look with nothing hanging down.
- You want the simplest install and the fewest accessories.
- Hexagon systems that sit tight to the ceiling and light the whole room evenly.
- Garages with a roller or sectional door that swings up close to the ceiling.
For most home garages this is the default choice, which is why our garage lighting range is built to surface mount out of the box.
When suspended mount wins
- Very high or raked ceilings where the floor would otherwise be dim.
- You want to drop concentrated light over a workbench, tool station or a single car bay.
- Task zoning, lighting different areas of the garage at different levels.
- Exposed rafter or warehouse style ceilings where a hung fixture looks intentional and clears racking.
Glare, hotspots and heat
A garage is a working space, so glare control matters more than in a living room. Surface mounted fixtures with a wide, diffused spread produce fewer hard hotspots and softer shadows, which is easier on the eyes when you are looking up at a car on a hoist. Suspended fixtures sit closer to eye level, so an exposed bright source can dazzle, choose diffused fittings and mount them above your normal sightline. On heat, LED runs far cooler than old fluoro or halogen, and both mounts allow airflow around the fixture. Suspended fittings get airflow on every side, which is a minor bonus in hot sheds. Whichever you pick, do not box a fixture in against insulation.
Australian electrical safety and compliance
Any hard wired fixture must be installed by a licensed electrician in Australia. This is not optional, mains wiring is licensed work. Choose fixtures that are RCM marked and SAA certified, and that comply with the national Electrical Equipment Safety Scheme (EESS), so you know the product has been assessed for the Australian market. This is exactly why plug and play matters. A plug and play hexagon system lets you lay out and connect the lights yourself, and many of our dimmable models run straight off the standard wall switch, so the licensed electrician only needs to handle the fixed wiring point. It keeps the job faster, cleaner and safer.
Mounting hardware, clearance and obstructions
Before you commit to a layout, walk the garage and map the obstructions.
- Garage door and tracks: a sectional door and its tracks travel close to the ceiling. Keep surface mounted fixtures clear of the door path, and never hang a suspended fixture where the door or springs move.
- Car hoists: plan for the raised height of a vehicle on a hoist. Suspended lights must clear the highest point, or sit outside the hoist footprint and light it from the side.
- Storage racking and shelving: tall racking casts shadows. Position fixtures so light reaches the aisles, not just the tops of the shelves.
- Fixings: match the anchor to the ceiling, timber screws into rafters, cavity anchors or joist fixings for plasterboard, self drillers for metal, masonry anchors for concrete. For suspended layouts, use a proper suspension kit with cable or chain rated for the fixture weight. See our mounting and suspension accessories.
On dust and moisture, garages and sheds collect both, and coastal or unheated garages can get condensation. Look for a sensible IP rating for a dusty, occasionally damp space, seal gaps where you can, and give surfaces a wipe down so dust build up does not dim the output over time.
Frequently asked questions
Is suspended or surface mounted lighting better for a low garage?
Surface mounted is better for a low garage. On a 2.4m to 2.7m ceiling a hanging fixture steals headroom and can clash with a raised garage door, so a flush surface mounted system that sits tight to the ceiling is the safer and cleaner choice.
Do I need an electrician to install garage lighting?
Any hard wired fixture must be installed by a licensed electrician in Australia, because mains wiring is licensed work. Plug and play systems let you lay out and connect the lights yourself, and the electrician only needs to handle the fixed supply point, which keeps the job faster and compliant.
How far should suspended garage lights hang down?
On a high or raked ceiling above 3m, dropping the fixture around 300mm to 800mm brings useful light closer to the floor and workbench without stealing headroom. On standard ceilings there is little to gain, so keep fixtures high or surface mount them instead.
What IP rating do I need for a garage or shed?
Choose a fixture with a sensible dust and moisture rating for a space that collects dust and can get occasional condensation. A higher IP rating helps in unheated, coastal or damp sheds, and wiping fixtures down keeps dust from dimming the output over time.
Which mount gives brighter, more even light in a garage?
For whole of room even light, surface mounted fixtures spread light widely and reduce shadows, which suits general garage use. Suspended fixtures concentrate more light directly below them, which is better for lifting lux over a specific task zone like a workbench or car bay.
