Quick answer: 5 fastest ways to cut glare in a garage tonight
To reduce glare when photographing or filming cars in a garage, control what the paint can see. Glossy paint behaves like a curved mirror, so every bright point above and around the car shows up in it. The fastest fixes are:
- Switch off any bare bulbs, battens or narrow downlights directly above the car.
- Light the car from high and wide, not straight down onto the bonnet and roof.
- Move the camera, not just the lights. Changing height or angle by 20 to 30 cm often slides a hotspot off a key panel.
- Fit a circular polariser (CPL) and rotate it until reflections on glass and paint drop away.
- Close the roller door, block windows and wear dark clothing so you stop seeing yourself in the doors.
For permanent results, replace point source lighting with large, diffused fixtures in a deliberate grid or hexagon layout, so reflections read as clean lines instead of random glare.
Why cars glare under garage lights
Light reflects in two ways. Diffuse reflection scatters light in every direction, and that is how you see the colour of the paint. Specular reflection bounces light away at a single angle, like a mirror. Clear coat, glass and chrome are highly specular surfaces.
The rule that governs glare is simple: the angle of incidence equals the angle of reflection. If a light sits above the car and your camera sits at the mirrored angle, the lens sees that light in the paint as a bright hotspot. Move the camera or the light and the reflection moves with it.
Gloss black and ceramic coated paint are the hardest to shoot. They have very little diffuse colour to compete with reflections, and their deep, glassy finish mirrors everything in the room. Metallic and pearl paints hide reflections slightly better, while matte and satin wraps barely reflect at all.
Diagnose where the glare comes from
Before buying anything, stand where the camera will be and study the car through the lens or phone screen. Name every bright shape in the paint. The usual culprits in Australian garages are:
- Ceiling fixtures: single bulbs, bare battens and narrow beam downlights create small, harsh hotspots on bonnets and roofs.
- An open roller door: a huge bright rectangle that washes out side panels and glass.
- White walls and ceilings: a low contrast haze across dark paint.
- Windows and skylights: daylight that changes colour and strength while you shoot.
- Phone torch or on camera light: flat light bounced straight back into the lens.
- You and the tripod: dark silhouettes in doors and glass.
Turn sources off one at a time. The reflection that disappears tells you what to fix first.
Fix the fixed lighting first
Indoors, the ceiling lighting is the biggest cause of glare, yet most photography advice ignores it. A small point source is very intense for its size, so its reflection clips to pure white in camera. A large, evenly diffused fixture with the same output has far lower brightness per square centimetre, so its reflection is softer and easier to expose.
The upgrade path is straightforward: replace bare bulbs and naked battens with fully diffused LED fittings, avoid narrow beam downlights over the parking bay, and spread output across several fixtures rather than one bright one. The garage lighting range is a good starting point if your current setup is a single batten or a couple of bulbs.
How grid and hexagon layouts create a clean reflection pattern

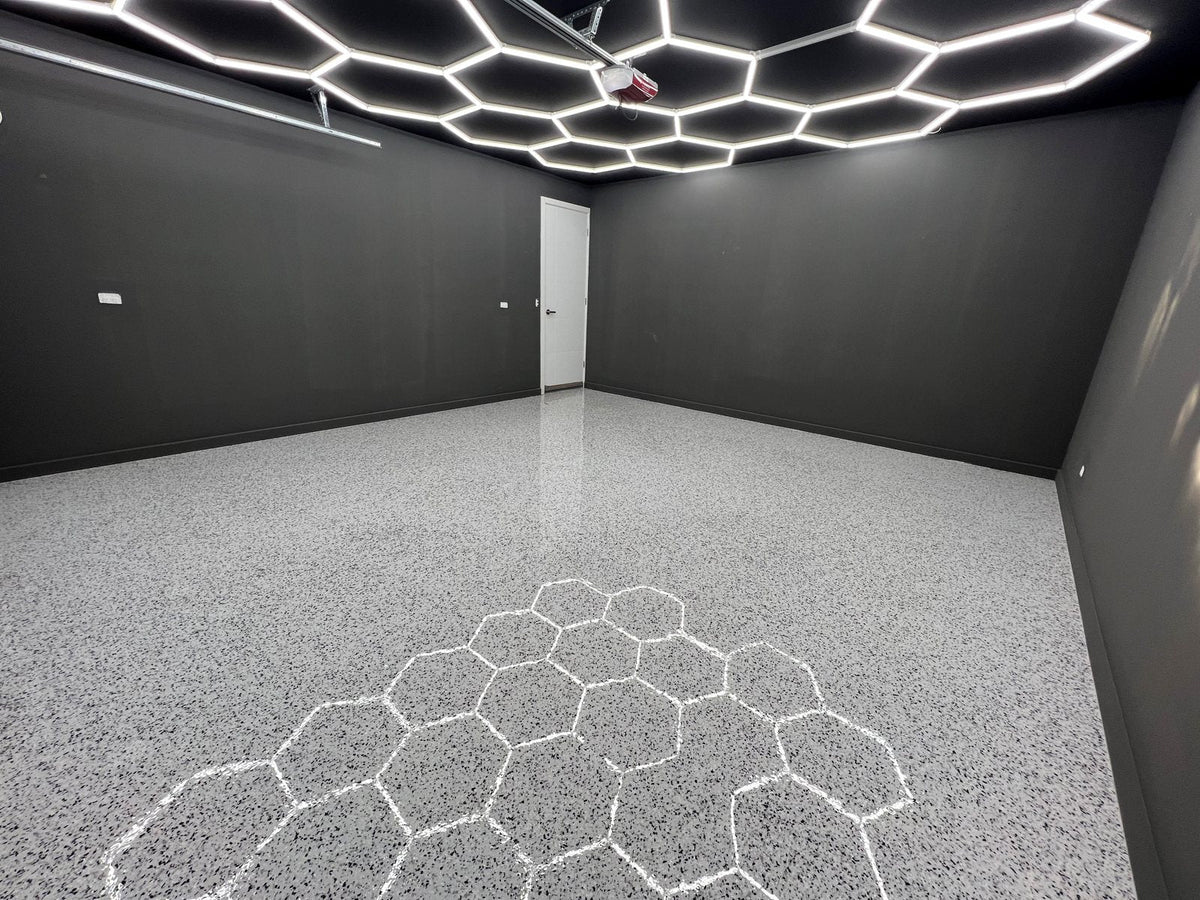

A grid or hexagon ceiling layout swaps random glare for a deliberate, repeating pattern. Because every segment has the same width and brightness, the reflection reads as a tidy geometric shape that follows the body lines of the car. That is why hexagon LED lighting has become a popular look in detailing bays and car content: the reflection becomes a signature rather than a fault.
To be honest about the limits, a hexagon grid still shows in gloss paint. It is a controlled reflection, not an invisible one. If you want a panel to look clean, move the camera so that panel reflects a dark section of ceiling outside the grid, or frame the pattern on purpose across the bonnet and roof.
Light placement: high, wide and feathered
- Bias lighting towards the sides of the bay so the brightest reflections land on the shoulder line, not the flat bonnet.
- Keep fixtures roughly 1 metre or more above the roof where ceiling height allows. A typical 2.4 m garage ceiling gives about that over most cars.
- Feather the light: let the soft edge of the light fall across a panel rather than the brightest centre, so brightness rolls off gradually.
Recommended lighting specs for car photography and video
| Spec | Recommended | Why it matters |
|---|---|---|
| Colour temperature | 5000K to 6500K | Neutral white for accurate paint colour and simple white balance |
| CRI | 90 or higher | Reds, blues and metallic flake render closer to true colour |
| Light level | Roughly 400 to 800 lumens per square metre | Lets you shoot at low ISO with a sharp aperture |
| Single garage (about 3 x 6 m) | Roughly 8,000 to 15,000 lumens in total | Even coverage without one dominant hotspot |
| Double garage (about 6 x 6 m) | Roughly 15,000 to 30,000 lumens in total | Enough output to light both sides of the car |
| Driver | Flicker free | Prevents banding in video and fast shutter stills |
| Diffusion | Fully diffused, no visible LED dots | Softer, cleaner reflections in paint |
These are practical starting points, not rules. CRI and driver type vary between fittings, so always check each product's listed specifications. For more detail on lumens and colour temperature, browse the technical guides.
Position the car and camera
- Rotate the car 15 to 45 degrees to the lights so reflections run along panels instead of straight across them.
- Change camera height. Shooting from bumper height shows less ceiling in the bonnet. Shooting higher shows more of it, which suits a hexagon pattern shot.
- Step back and zoom in. A 50 to 85 mm focal length (or a phone's 2x lens) from further away flattens the curves and shows less of the room in the paint.
Polarising filters explained
A circular polariser blocks light that has been polarised by bouncing off non metallic surfaces such as glass and clear coat. Rotate it while watching the screen and reflections fade in and out. The effect is strongest when you shoot at roughly 30 to 40 degrees to the surface.
A CPL has limits. Curved panels reflect at many angles, so clearing one area often leaves another bright. Chrome and bare metal reflections are barely affected. A CPL also costs about 1 to 2 stops of light. Rotate it until the windscreen goes clear to show the interior, or rotate it for the paint panel that matters most. You rarely get both in one frame, which is why layering exists.
Step by step: CPL layering on a tripod
- Lock the camera on a tripod. Use manual exposure, manual focus and a fixed white balance.
- Rotate the CPL for the paint and take a base frame.
- Without touching the tripod, rotate the CPL for the windscreen and side glass and take a second frame.
- Take extra frames for wheels or lower panels if needed, plus a frame 1 stop darker to protect highlights.
- Stack the frames as layers in your editor and mask in the cleanest part of each.
- Finish by cloning out small specks. Post processing should polish a good capture, not rescue a bad one.
Phone alternative
Use a clip on CPL, lock focus and exposure (long press on iPhone, or Pro mode on Android), pull exposure down until highlights stop clipping, and shoot several CPL rotations from a steady stand. Pick the best frame afterwards.
Camera and phone settings
| Setting | Camera | Phone |
|---|---|---|
| ISO | 100 to 400 | Lowest available |
| Aperture | f/8 to f/11 for the whole car in focus | Fixed, use the main or 2x lens |
| Shutter (stills) | Any speed on a tripod, 1/100 or faster handheld | Let it set, then lock exposure |
| White balance | Set in Kelvin to match your lights, for example 5000K | Lock in Pro mode |
| Exposure | Expose for highlights, keep the histogram off the right edge | Drag exposure down until reflections hold detail |
| File format | RAW | RAW where available |
Filming cars: glare and flicker in video
Australian mains power runs at 50Hz, so many LED fittings pulse 100 times a second. If your shutter speed does not match, you get rolling bands or flicker. Shoot 25fps at 1/50, or 50fps at 1/100. Both also follow the 180 degree shutter rule, where shutter speed is roughly one over double the frame rate. Avoid 30fps at 1/60 under mains LED lighting unless the fittings are flicker free.
Polarisers behave differently when the camera moves. The angle to each panel changes during a slider or gimbal move, so reflections creep back in. Set the CPL for the middle of the move, keep moves short and rehearse before recording.
If your lights are too bright for the look you want, dimmable hex lighting lets you dial output down. HEXA's dimmable Classic models dim straight from a standard wall switch.
Cheap fixes vs permanent fixes
| Problem | Cheap fix tonight | Permanent fix |
|---|---|---|
| Hotspots from bulbs or battens | Switch off the worst fittings | Diffused fixtures in a grid or hexagon layout |
| Open roller door | Close it and shoot at night | Plan shoots around closed door lighting |
| White wall haze | Hang dark fabric out of frame | Darker wall finish where it reflects |
| Your reflection | Dark clothing, timer or remote shutter | Shoot from a fixed, rehearsed position |
| Uneven light | Rotate the car | Spread fixtures high and wide |
Troubleshooting by surface
| Surface | Typical glare | Best fix |
|---|---|---|
| Gloss black or ceramic coated paint | Every fixture visible | Move the camera, use a controlled pattern, CPL for sheen |
| Windscreen and side glass | Ceiling hides the interior | CPL rotated for glass, shoot at 30 to 40 degrees |
| Chrome and polished wheels | Hotspots a CPL will not touch | Change angle, darken surroundings |
| Metallic and pearl paint | Flake looks flat | High CRI light from the sides |
| Matte or satin wrap | Little glare, flat look | Low side light to show texture |
Frequently asked questions
How do I stop ceiling lights reflecting on my car in photos?
Lower the camera or change its angle so the reflection slides off the panel, switch off the fittings directly overhead and use a polariser. Long term, replace point source bulbs with large diffused fixtures in an even layout.
What shutter speed stops LED flicker when filming in Australia?
Use 1/50 at 25fps or 1/100 at 50fps. Australian mains power runs at 50Hz, so these shutter speeds line up with the pulse of most mains powered LED lighting and also follow the 180 degree shutter rule.
Does a polarising filter remove all reflections on a car?
No. A CPL reduces reflections from glass and clear coat, but curved panels reflect at many angles and chrome is barely affected. It also costs about 1 to 2 stops of light, so expect to raise ISO or slow the shutter.
Do hexagon lights cause glare on car paint?
Hexagon lights reflect in gloss paint like any light source. The difference is that a diffused hexagon grid produces an even, deliberate pattern instead of harsh hotspots, which is why it is a popular look for detailing and car content.
What colour temperature is best for photographing cars in a garage?
Use 5000K to 6500K. This neutral range shows paint colour accurately and makes white balance simple. Lock the camera's white balance to the same Kelvin as your lights so colour stays consistent between shots and clips.
