A garage gym asks far more of its lighting than a storage garage ever will. You need even, shadow free light to check lifting form in a mirror, enough brightness to film a set cleanly, and a space that feels motivating rather than like a dim shed. Hexagon LED panels have become the go to fixture for exactly this because they spread bright, uniform light across a wide area and look the part while doing it. This guide walks through the lux targets, panel counts, layouts and Australian install realities so you can plan a garage gym that lights up properly the first time.
Why a garage gym needs more light than a storage garage
A single dusty batten light is fine for finding the lawnmower. It is nowhere near enough for training. In a gym you are watching bar path in a mirror, judging depth on a squat, spotting elbow flare on a press and often recording it all on a phone. Every one of those tasks needs high, even light with very few dark patches. Uneven lighting throws shadows across the mirror and the floor, which hides form faults and makes filming look flat. The goal is a bright ceiling of light that reaches every corner of the training area, not a single hot spot in the middle of the room.
Hexagon panels suit this because they tile into a connected grid. Instead of one bright source, you get many linked faces spreading light in overlapping pools, which is what kills shadows. You can see the full range across our hexagon LED lighting collection.
Lux targets by gym zone
Lux measures how much light actually lands on a surface, so it is the number to plan around. Different parts of a garage gym need different levels. Use these as sensible working targets for an Australian home gym.
| Zone | Target lux | Notes |
|---|---|---|
| General training floor | 300 to 400 lux | Baseline for moving around safely and warming up |
| Heavy lifting and rack zone | 500 lux | Higher and very even so the mirror and bar path stay clear |
| Cardio area | 300 lux | Comfortable brightness for longer sessions |
| Detail or workbench corner | 750 to 1000 lux | Task level light for repairs, plates and close work |
Aim to hit these across the whole zone, not just under one panel. Even coverage matters more than a single big number in the centre of the room.
How many hexagon lights for a single or double garage
Panel count comes down to floor area in square metres and the target lux above. The examples below are a planning starting point, and exact output depends on the specific panels you choose, so always check the output rating of the product before you commit.
| Garage | Approx area | Suggested approach |
|---|---|---|
| Single garage | 18 to 20 sq m | A connected cluster or small spread grid centred over the main training zone, extended toward the mirror wall |

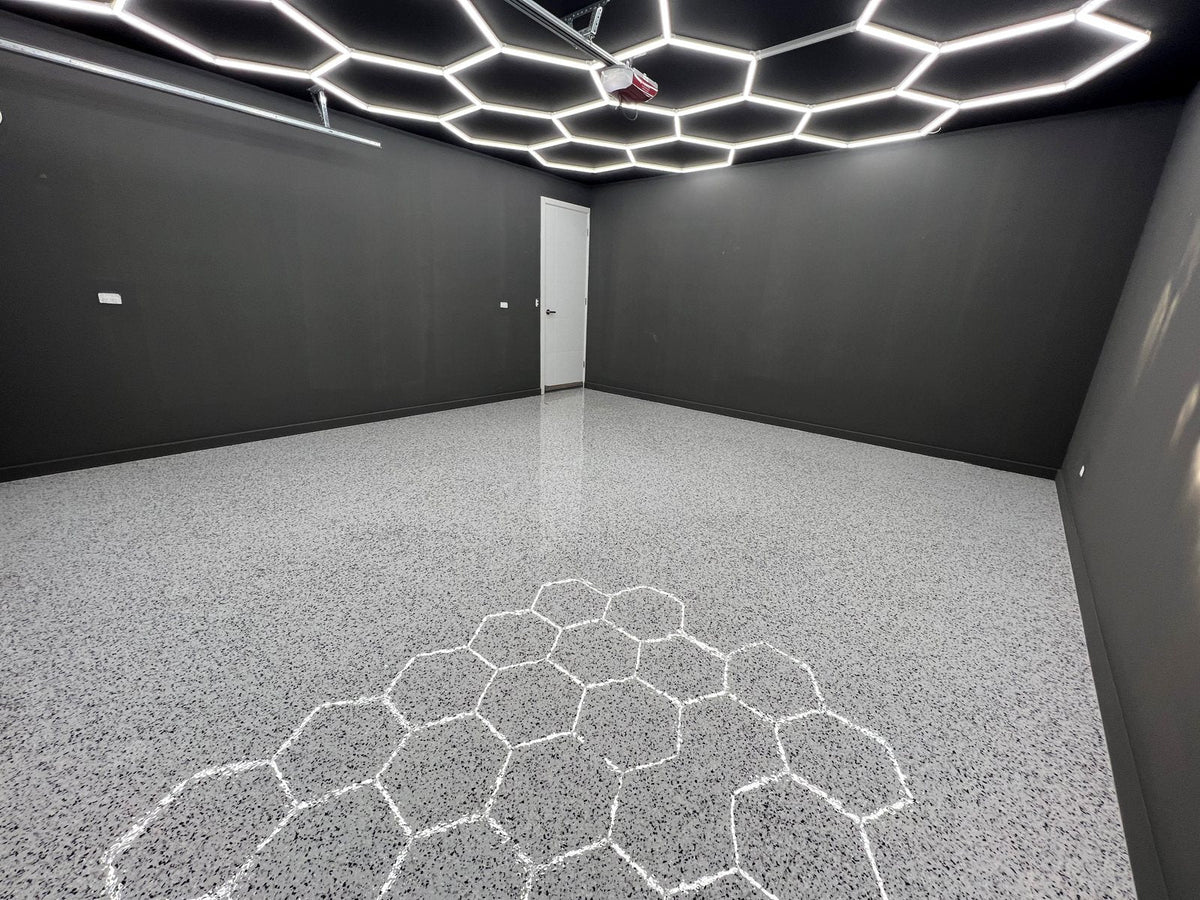

| Double garage | About 36 sq m | A larger spread grid or two linked clusters, one over the rack and one over the open floor, so light reaches both bays |
The practical rule is to light the training zone to around 500 lux and the rest of the floor to 300 lux or more, then add panels until the coverage is even rather than chasing a single figure. A larger connected grid almost always beats one dense cluster for a gym because it removes shadows.
Layout options compared
There are three common ways to lay out hexagon panels in a garage gym. Each suits a different space.
| Layout | Pros | Cons | Best use |
|---|---|---|---|
| Single centred cluster | Striking feature look, simple to mount, one power point | Light falls off at the edges, shadows near walls and the mirror | Small single garage with training right underneath |
| Spread hexagon grid | Most even coverage, best for filming and mirrors, scales to any size | Needs more panels and planning | Serious single or double garage gyms |
| Linear run | Great over a long narrow bay or rack row, simple line to follow | Less wrap around light, can leave the sides darker | Long narrow garages or lighting a rack and platform |
For most people the spread grid wins. If a linear feel suits your bay, our garage lighting collection shows how the shapes work in real garages.
Colour temperature for training and recovery
Colour temperature sets the mood and the alertness of the space. For the working part of a garage gym, cool white in the 5000K to 5700K range is ideal. It reads as clean daylight, keeps you alert and makes filmed footage look crisp and neutral. Warmer light below 4000K feels relaxed but can look dull and yellow on camera and under a mirror.
If you also use the space to stretch, do mobility or wind down, tunable or RGB options let you drop to a warmer or coloured scene for recovery, and a bold colour for filming or atmosphere. Fixed cool white is the safe default for pure training. If you want dimming control for different sessions, look at the dimmable hex lighting range, which dims straight from a standard wall switch on the Classic models.
Mirror and form-check lighting
The mirror is where lighting either helps or fails you. Position panels so light falls onto you and onto the mirror wall evenly, never as a single source directly behind your head that throws your body into shadow. Extend the grid toward the mirror so the reflection stays bright from any lifting angle, including at the bottom of a squat when you are looking up. Avoid a single panel directly above the mirror that creates glare and a dark zone below. Overlapping light from several linked faces is what keeps the reflection shadow free.
Low, sloped and rafter ceilings
Garage ceilings are rarely ideal. On a low ceiling, surface mounting flat panels keeps every millimetre of headroom for overhead presses and pull ups, which matters more than you think when a bar is over your head. On a sloped or exposed rafter ceiling, mount panels to the underside of the rafters or a batten so the faces sit level and point down at the floor rather than across the room. Plan the grid around the roller door track and any beams so nothing fouls the door travel, and keep panels clear of the door swing. Surface mount is the practical default for most garages, with suspension reserved for very high ceilings where you want to bring the light closer to the platform.
Glare, flicker and CRI for filming
If you film lifts, three things matter. High CRI means colours look true on camera, so your skin, kit and bar look natural rather than washed out. Flicker free operation stops the banding and strobing that ruins slow motion footage and causes eye strain over a long session. Good diffusion controls glare so you are not squinting into a bright face or fighting reflections off the mirror and phone screen. Look for panels described as high CRI and flicker free, and aim the grid so no single face points straight into the camera or your eyes.
Australian install reality and compliance
Most hexagon LED gym panels run on 240V and are plug and play, connecting together and running from a standard wall switch or power point, so a straightforward setup does not require rewiring. If you are adding new fixed wiring or circuits, that work is for a licensed electrician. On the safety side, look for lighting that is SAA approved and RCM marked, registered under the EESS scheme where applicable and built to AS/NZS 60598, the standard covering luminaire safety in Australia. These marks show the product has been made to recognised Australian requirements, which matters in a garage that doubles as a workspace.
Step by step planning
- Measure the garage floor in metres and note the ceiling height and slope.
- Mark your zones, the rack and platform, open floor, cardio corner and any workbench.
- Set a lux target per zone using the table above.
- Choose a layout, usually a spread grid, and sketch the panel positions.
- Extend the grid toward the mirror wall for even form-check light.
- Map the panels to your power points and switch, and route around the roller door track and beams.
- Confirm mounting height and headroom before you fix anything.
- Install, then stand in each zone and check for shadows, adding panels if needed.
Running costs and heat
LED hexagon panels are cheap to run. As an illustration, a garage gym setup drawing around 200 watts in total, used two hours a day, uses roughly 0.4 kWh a day. At about 30 cents per kWh that is around 12 cents a day, close to 44 dollars a year. Your figure will vary with the number and rating of panels and your local tariff, so use your product wattage and power price to get an exact number. LED panels also run cool compared with old halogen or metal halide fittings, which keeps a closed garage more comfortable to train in.
Keeping the garage dual-use
Most garage gyms still have to park a car, store tools or run as a workshop at times. Bright, even hexagon lighting suits all of those jobs, so the same grid that lights your lifts also lights the car bay and workbench. Surface mounting keeps headroom and clearance for the door, and a switchable or dimmable setup lets you drop the brightness for casual use and lift it for training. A well planned grid turns the whole garage into a better space, not just a gym. Browse the full gym lighting collection to see setups built for exactly this.
Frequently asked questions
How many hexagon lights do I need for a garage gym?
It depends on floor area and how even you want the light. As a guide, a single garage of about 18 to 20 square metres suits a connected cluster or small spread grid over the main training zone, while a double garage of about 36 square metres usually needs a larger spread grid or two linked clusters. Aim for around 500 lux over the rack and 300 lux or more across the rest of the floor, then add panels until coverage is even and shadow free.
What colour temperature is best for a garage gym?
Cool white in the 5000K to 5700K range is best for training. It reads as clean daylight, keeps you alert and makes filmed footage look crisp. If you also stretch or film content, tunable or RGB options let you shift to warmer or coloured scenes for recovery and mood, but fixed cool white is the safe default for pure training.
Do hexagon garage gym lights need an electrician to install?
Most 240V hexagon LED panels are plug and play, linking together and running from a standard wall switch or power point, so a typical setup does not require rewiring. If you are adding new fixed wiring or circuits, that work should be done by a licensed electrician.
Are hexagon lights bright enough for filming workouts?
Yes, when you use a spread grid rather than a single source. Even, high output light removes the shadows that ruin footage, and choosing high CRI and flicker free panels keeps colours true and stops banding in slow motion. Aim the grid so no face points straight into the camera or your eyes.
Will hexagon lights work on a low or sloped garage ceiling?
Yes. On a low ceiling, surface mount flat panels to keep headroom for overhead lifts. On a sloped or exposed rafter ceiling, fix panels to the rafters or a batten so the faces sit level and point down at the floor. Plan the layout around the roller door track and beams so nothing fouls the door.
